How to Install PEX Pipe?

PEX (cross-linked polyethylene) piping has become a popular choice for modern plumbing systems due to its flexibility, ease of installation, and durability. Whether you're tackling a DIY plumbing project or working on a professional installation, understanding the correct procedures for installing PEX pipe is essential. This guide will walk you through the process, providing technical details and real-world examples to ensure a successful installation.

Table of Contents

1. Introduction to PEX Pipes

2. Tools and Materials Needed

3. Preparation Before Installation

4. Step-by-Step Installation Process

   • Cutting and Fitting PEX Pipes

   • Connecting PEX Pipes

   • Securing and Testing the System

5. Common Issues and Solutions

6. Real-World Examples

7. Conclusion

8. Call to Action

PEX Pipes

PEX pipes are a versatile choice for a wide range of plumbing applications, from residential water supply to radiant floor heating systems. They offer several advantages over traditional materials like copper or PVC, including resistance to scale and chlorine, lower shipping costs, and ease of installation. PEX pipes are available in various types—PEX-A, PEX-B, and PEX-C—each with specific benefits suited for different applications.

Tools and Materials Needed

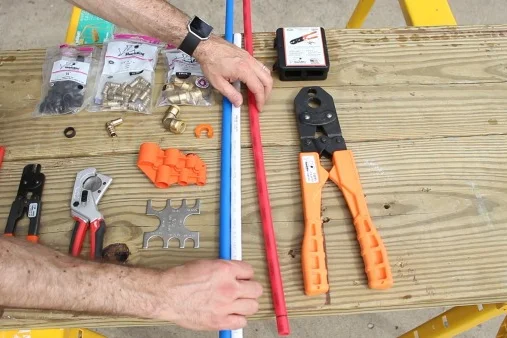

Before you start, gather the following tools and materials:

• PEX Pipe: Choose the appropriate type and size for your project.

• PEX Fittings: Include elbows, tees, and connectors.

• Crimp or Clamp Tool: For securing connections.

• PEX Cutter: To make clean cuts on the pipe.

• Pipe Supports and Hangers: To secure the pipes in place.

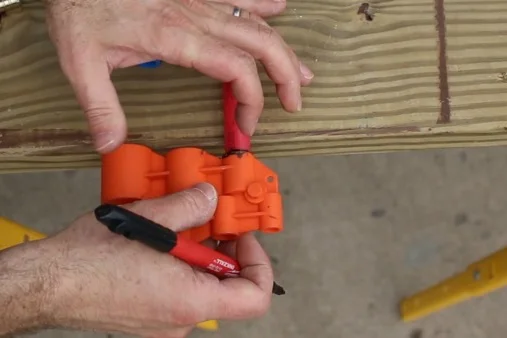

• Measuring Tape and Marker: For accurate measurements.

• Deburring Tool: To smooth pipe edges.

Preparation Before Installating Pex Pipe

1. Planning Your Layout: Determine the layout of your PEX system, taking into account the location of fixtures and appliances. Create a detailed diagram to guide your installation.

2. Shutting Off Water Supply: If you're replacing existing pipes, turn off the main water supply and drain the system.

3. Measuring and Cutting Pipes: Measure the length of PEX pipe needed and use a PEX cutter for a clean cut. Ensure all cuts are straight to prevent leaks.

Step-by-Step Installation Process

Cutting and Fitting PEX Pipes

1. Cut the Pipe: Use a PEX cutter to make a clean, straight cut. Avoid jagged edges that could interfere with fittings.

2. Deburr the Pipe: Smooth any rough edges with a deburring tool to ensure a proper seal.

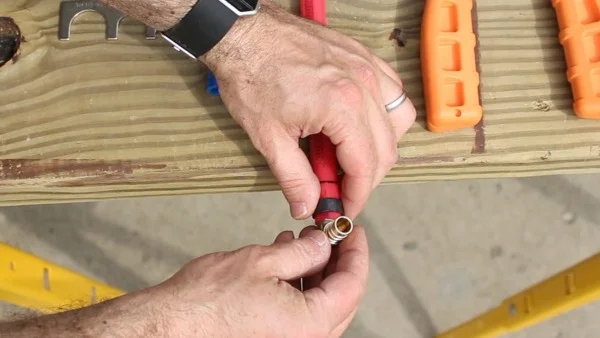

3. Install Fittings: Slide PEX fittings onto the pipe ends. Ensure they are fully inserted to create a tight connection.




Connecting PEX Pipes

1. Use Crimp or Clamp Rings: Depending on your chosen connection method, place crimp or clamp rings over the pipe and fittings.

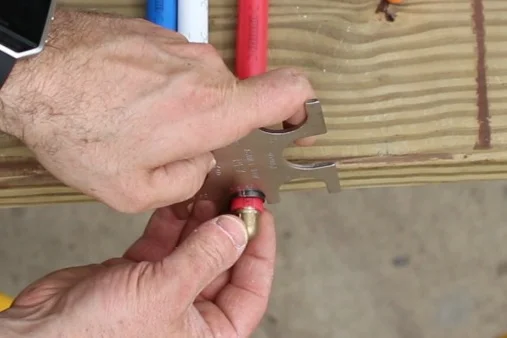

2. Secure Connections: Use a crimp or clamp tool to tighten the rings. Ensure all connections are secure to prevent leaks.

Securing and Testing the System

1. Install Pipe Supports: Secure PEX pipes with appropriate supports and hangers to prevent movement and stress on connections.

2. Test the System: Turn the water supply back on and check for leaks. Pressurize the system gradually and inspect all connections.

Common Issues and Solutions

• Leaking Connections: Check for improper installation of fittings and rings. Tighten connections as needed and ensure all fittings are fully inserted.

• Pipe Damage: Avoid excessive bending or kinking of PEX pipes. Use pipe supports to prevent stress.




PEX pipe installation offers numerous benefits, including ease of use and durability. By following the detailed steps outlined in this guide, you can achieve a successful installation whether for a home renovation or a new build.
